XXL models

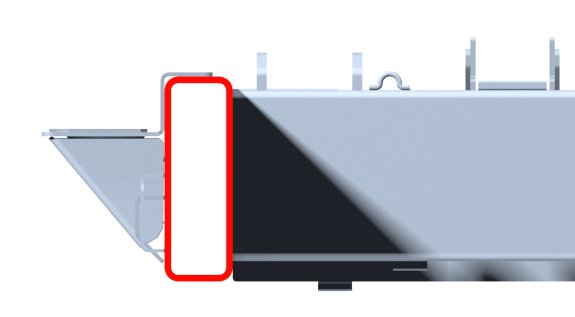

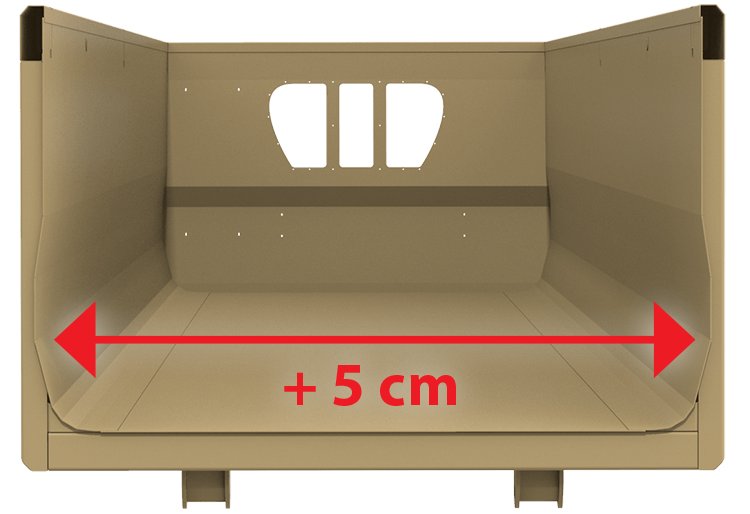

Thanks to the use of high tensile steel and a body design based on successive folds, Leboulch has significantly reduced the weight of its tipping trailers. The body has a cone shape (2.25 m inside width at the front, 2.3 m at the rear) and tapers at the base to facilitate unloading. These two features ensure a greater stability to the machine when tipping.
(A) Body in ST420 high tensile steel sheet (thickness: 4 mm).
Sturdy tubular chassis stringer of 300 x 100 x 10 mm

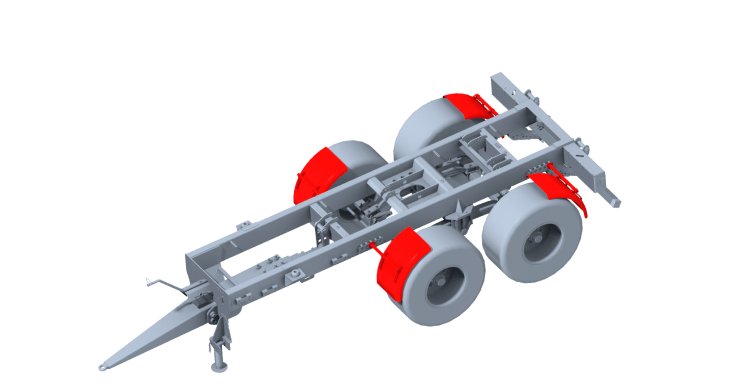

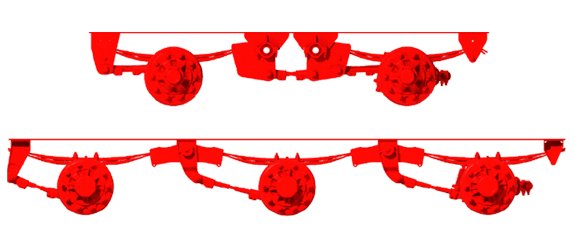

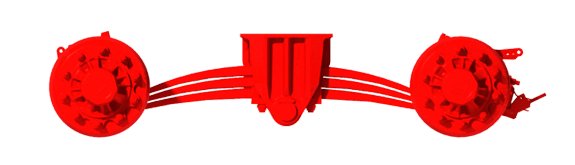

The bogie suspension with parabolic leaves (on models from 73D19 to 67D24) offers a large wheel travel for improved crossing capacity thanks to its mounting kinematics and load distribution.
Tandem/tridem suspensions with connecting rods (on models from 67D26 to 85T32) are the best compromise for both road and agricultural use.

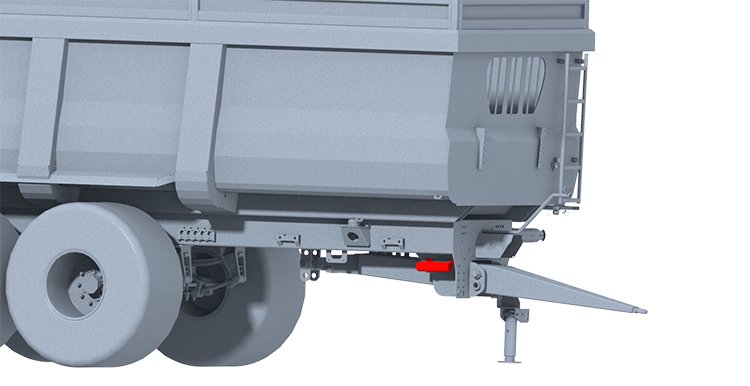

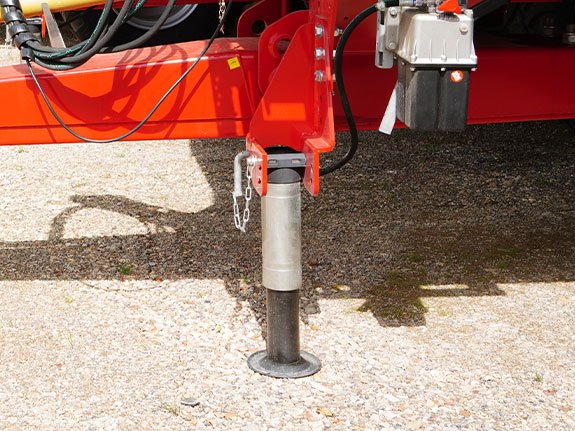

Hydraulic folding parking stand attached directly to the trailer chassis to free the drawbar and facilitate turning.

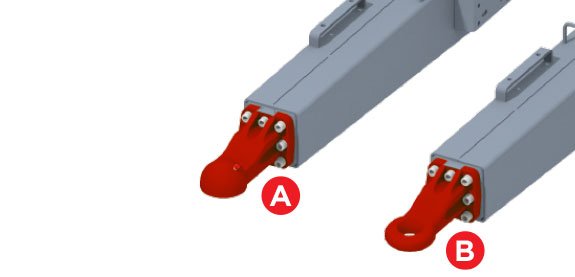

Choice of eyelets
Document tube with individualised parts book and user manual.

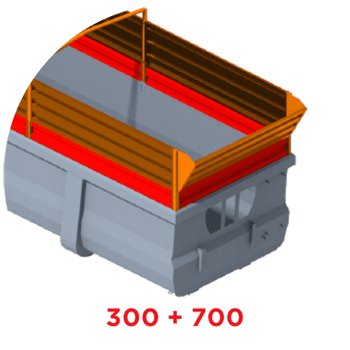

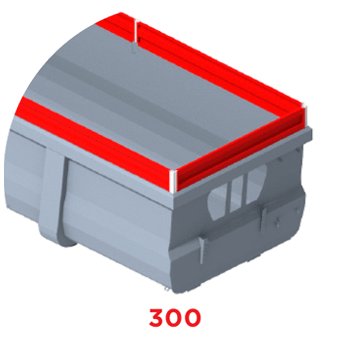

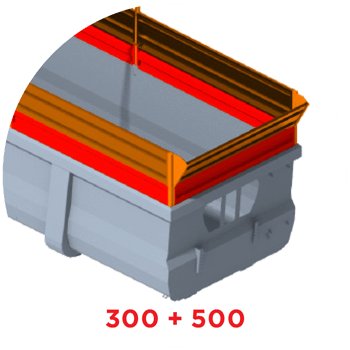

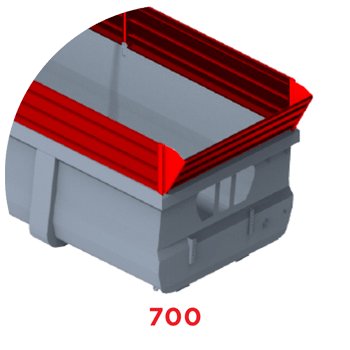

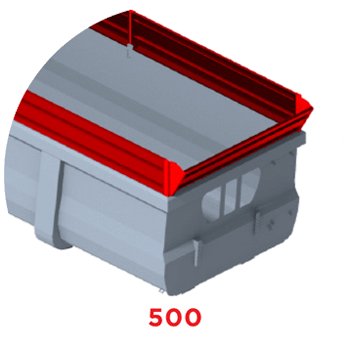

To best suit your needs, Leboulch offers extensions of 300 (steel or aluminum), 500 (aluminum) or 700 mm (aluminum), stackable up to 1 m. To limit weight and facilitate assembly by a single person, 2-part side extensions on single- and double-axle models, and 3-part extensions on triple-axle models, are available.

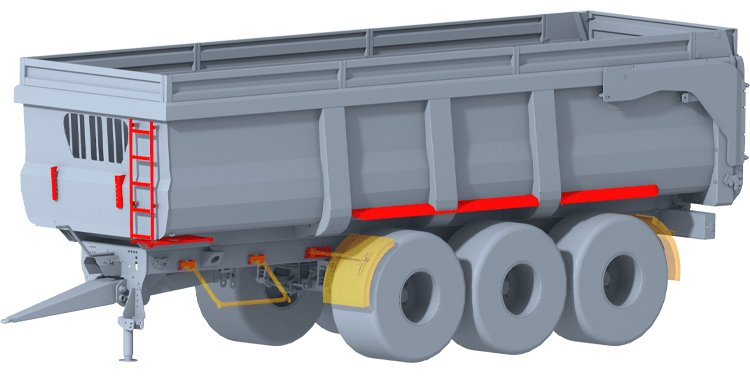

Ladder, galvanised side mudguards and pre-equipment for optional equipment(side bumper and thermoplastic mudguards).
Recommended for on-road use, the thermoplastic mudguard option limits splashing onto the tractor or tipping trailer.

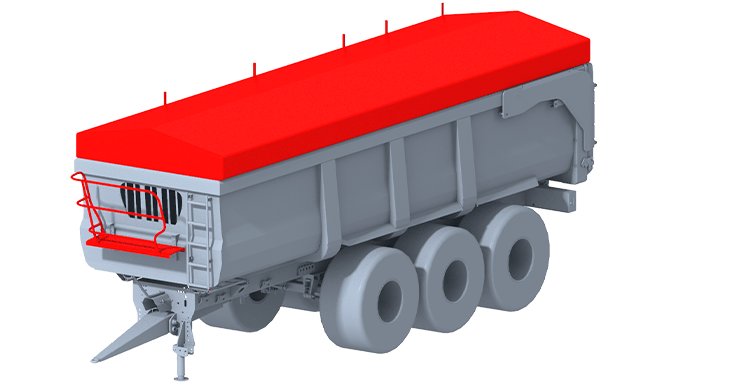

Bâchage roulant disponible.

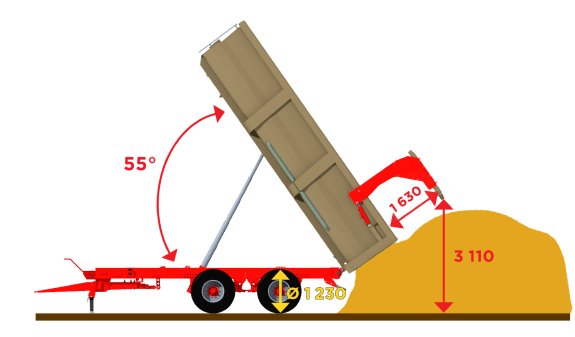

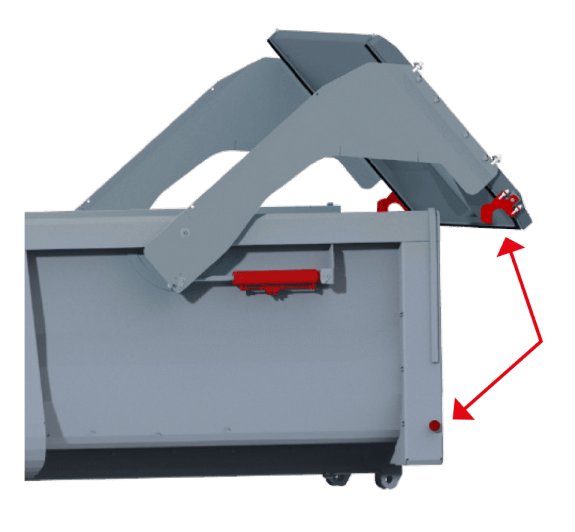

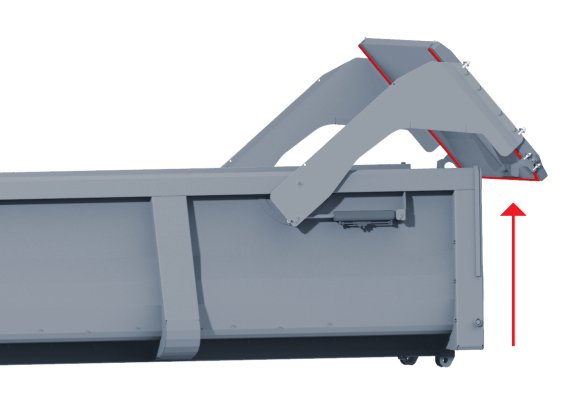

High-clearance rear door with hydraulic opening for easy unloading of silage with an extension and to avoid scraping the pile when tipping at the highest.
Door opening cylinder protected by the door arm and upper body edge strip. Double door closing safety system: hydraulic with check valve and mechanical with 2 adjustable hooks.
Flexible seal in a rail along the entire height of the door.
.png)
Joskin
Stock #
A44
le Boulch Dump Trailers
Call for Price
Overview
Specifications
light tapered body
design
running gear
drawbar & parking stands
document tube
wide choice of extensions
ladder and mudguards
thermoplastic mudguards
rolling cover
safety and eas
literature
Videos

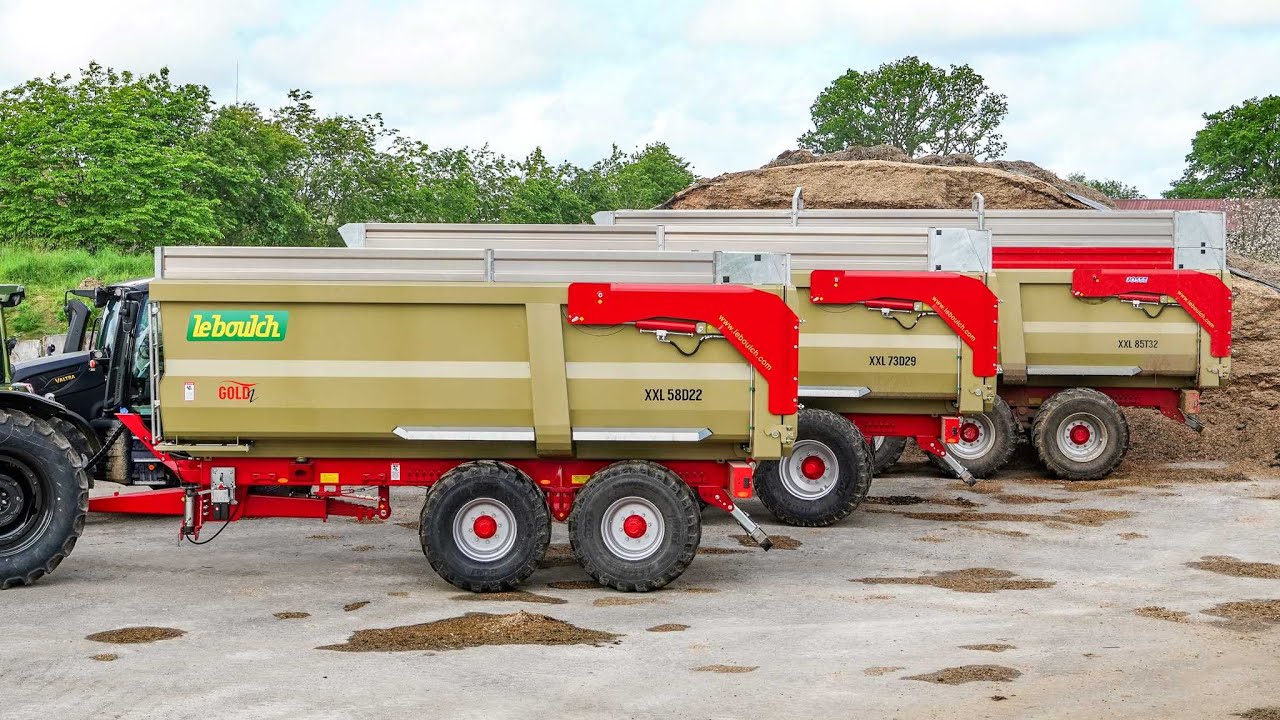

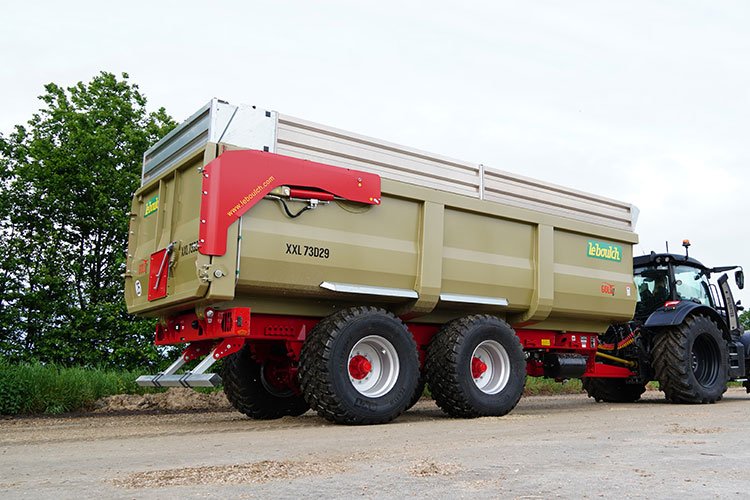

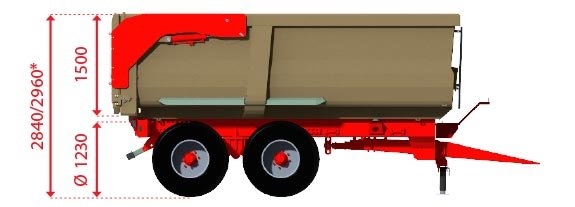

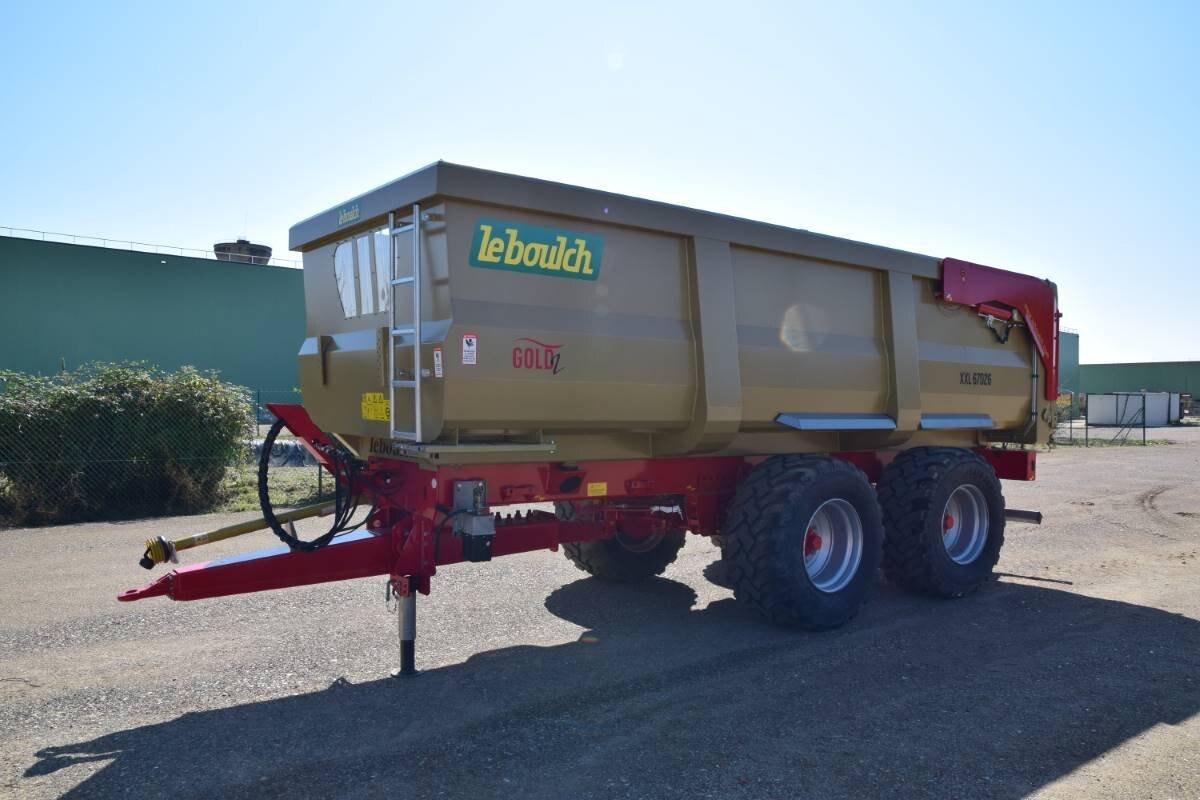

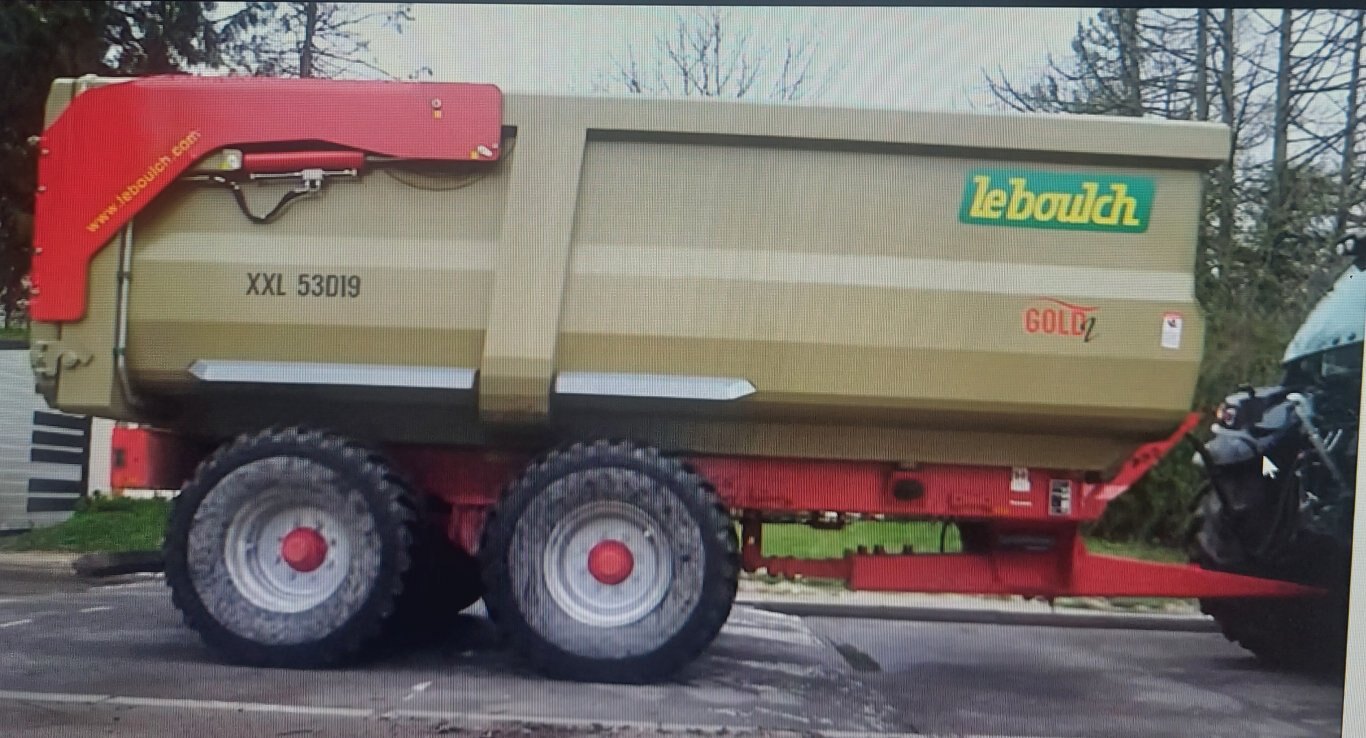

Le Boulch Dump Trailers are made in France, owned and operated by JOSKINLeboulch GOLD2 agricultural dump trailers are available in several models ranging from 16 to 32 tonnes GVW and 1.2 m or 1.5 m inside height. They are made from S420MC high tensile steel, which has enabled us to create a light body with fewer reinforcements that remains sturdy thanks to the full-length folds. These beige and red tapered bodies are wider at the bottom to lower the centre of gravity and facilitate emptying. Additional features include a door seal, a parabolic leaf suspension, a grain chute with adjustable opening and a large sight window. Models Available le Boulch ADXXL53D19/2-22le Boulch ADXXL67D26/2 22le Boulch ADXXL85T32/3-22Please contact our Sales Team for Specs and Pricing on the Model of Interest!
|
|
|
Model
ADXXL
Category Name
Trailers
Year
2025
Sale Type
New
Manufacturer
Le Boulch
Light Tapered Body
|
|
Design
|

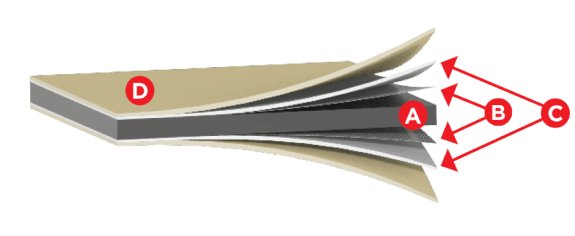

(B) Shot blasting. (C) 2K primer coat applied directly after blasting + flash-off before applying the finish. (D) Finish with 2K paint and a hammered effect. |
|
|
Running Gear
|
|
|
|
Drawbar & Parking Stands
|
|
|
Document Tube
|
|
Wide Choice Of Extensions
|
|
 |
Ladder And Mudguards
|
|
Thermoplastic Mudguards
|
|
Rolling Cover
|
|
Safety And Eas
|
|
|
|
|
|
Videos
Model
ADXXL
Category Name
Trailers
Year
2025
Sale Type
New
Manufacturer
Le Boulch
Quantity
1
